Visual element variables

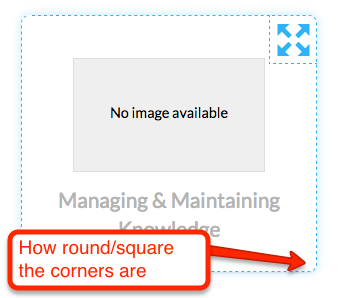

Border radius

Otherwise know as rounded corners, border radius is applied to many different containers in the Responsive skin. There are two types of border radius variables; one for small corners and one for medium sized corners. Small borders can be seen in the "Table of contents" and Search Report filters. Medium sized rounded corners can be seen in dynamic listings (found on Portfolios and Categories) and "Related Articles".

Screenshots





Variables

@border-radius-default
Default value: .25em
Definition: The default border radius applied to tabbed containers, content containers, and messaging to name a few. Value is set to 1/4th of the containers font size.
@border-radius-lsf
Default value: .5em
Definition: The border radius used in dynamic listings, dialogs, and some banners. Value is set to 1/2 of the containers font size.

CSS

Here is an example of how these variables would be used in a rule set.

// Default border radius
.ui-progressbar {
    border: 1px solid @highlight-container-border-color;
    border-radius: @border-radius-default;
    height: 2em;
    overflow: hidden;
    position: relative;
    text-align: left;
}

// Dynamic listings border radius
#link-picker-tree {
    border: 1px solid @primary-container-border-color;
    border-radius: @border-radius-lsf;
    height: 16.5em;
    overflow: auto;
    padding: 1em;
}

Box shadows

An inner box shadow is applied to inputs, text areas, and buttons when a user clicks on them.

Screenshots


feedback-text area-inner-shadow.png

Variables

@box-shadow-inner
Default value: inset .1em .1em .4em rgba(0,0,0,.15)
Definition: This inner shadow is used when a form element such as a textarea or input field is clicked in.
(Note - image above zoomed in significantly)

CSS

Here is an example of how this variable would be used in a rule set.

textarea:active,
textarea:focus {
    border: 1px solid @highlight-color;
    box-shadow: @box-shadow-inner;
    outline: 0;
}

Disabled styles

Interactive elements in the Responsive skin such as buttons, links, and form elements all have a disabled state. This state is set by a disabled attribute in the HTML and a disabled class name.

Screenshots




Variables

@disabled-background
Default value: lighten(@highlight-color-desaturated, 35%)
Definition: The background color applied to disabled buttons and form elements.
@disabled-border-color
Default value: lighten(@highlight-color-desaturated, 20%)
Definition: The border color applied to disabled buttons and form elements.
@disabled-link-color
Default value: lighten(@highlight-color-desaturated, 15%)
Definition: The text color of disabled links, buttons, and form elements.

CSS

Here is an example of how these variables would be used in a rule set.

.mt-disabled:active,
.mt-disabled:focus {
    background: @disabled-background !important;
    border: 1px solid @disabled-border-color !important;
    box-shadow: none !important;
    color: @disabled-link-color !important;
    cursor: default !important;
}

Edit controls

These elements control editor level functionality in regards to page settings, dynamic listings, and guide tabs.

Screenshots







Variables

@edit-controls-background-color
Default value: @background
Definition: The background color of the edit control container.
@edit-controls-background-color-hover
Default value: @highlight-color
Definition: The background color of the edit control container when a user moves their mouse over it.
@edit-controls-border-color
Default value: @highlight-color
Definition: The border color of the edit control container.
@edit-controls-border-color-hover
Default value: @highlight-color
Definition: The border color of the edit control container when a user moves their mouse over it.
@edit-controls-border-radius
Default value: 0 0 @border-radius-default 0
Definition: The rounded corners of the edit control container.
@edit-controls-text-color
Default value: @highlight-color
Definition: The color of the edit control icon.
@edit-controls-text-color-hover
Default value: contrast(@highlight-color)
Definition: The color of the edit control icon when a user moves their mouse over it.

CSS

Here is an example of how these variables would be used in a rule set.

.mt-edit-control {
    background: @edit-controls-background-color;
    border: 1px dashed @edit-controls-border-color;
    border-radius: 0 @border-radius-default 0 0;
    color: @edit-controls-text-color;
    cursor: pointer;
    display: none;
    float: right;
    font-size: 200%;
    height: 1.5em;
    line-height: 1;
    margin: 0 0 -2em -2em;
    overflow: hidden;
    padding: .25em;
    position: relative;
    text-align: center;
    text-indent: -9999px;
    white-space: nowrap;
    width: 1.5em;
    z-index: 9;
}

Contextual help icons

You will find F1 help links throughout the Responsive skin. Viewable by pro members only, these links trigger an F1 dialog and display additional help information about the functionality associated with it.

Screenshots



Variables

@f1-icon-background-color
Default value: @highlight-color
Definition: The background color of the F1 icon circle.
@f1-icon-background-color-hover
Default value: lighten(@highlight-color, 37%)
Definition: The background color of the F1 icon circle when a user moves their mouse over it.
@f1-icon-border-color
Default value: @highlight-color
Definition: The border color of the F1 icon circle.
@fi-icon-border-color-hover
Default value: darken(@f1-link-color, 15%)
Definition: The border color of the F1 icon circle when a user moves their mouse over it.
@f1-icon-text-color
Default value: contrast(@highlight-color)
Definition: The icon color of an F1 link.
@f1-icon-text-color-hover
Default value: darken(@f1-link-color, 15%)
Definition: The icon color of an F1 link when a user moves their mouse over it.
@f1-link-color
Default value: @highlight-color
Definition: The text color of an F1 link when text is visible.

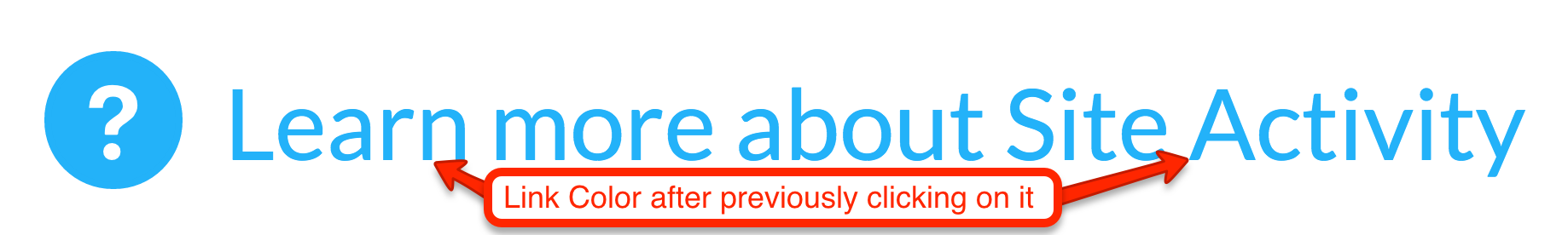

@f1-link-color-visited
Default value: @highlight-color
Definition: The text color of an F1 link when a user has previously clicked on it.

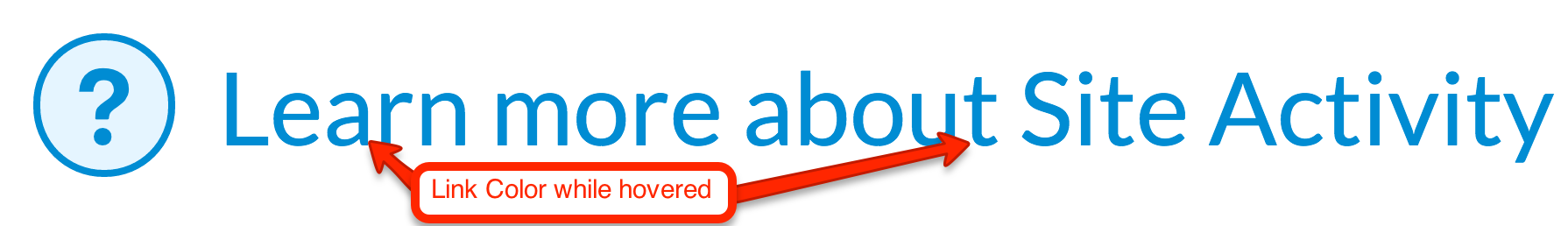

@f1-link-color-hover
Default value: darken(@f1-link-color, 15%)
Definition: The text color of an F1 link when a user moves their mouse over it.
@f1-link-color-active
Default value: darken(@f1-link-color, 15%)
Definition: The text color of an F1 link when a user clicks the link or hits enter after tabbing to it with their keyboard.
@f1-link-color-focus
Default value: darken(@f1-link-color, 15%)
Definition: The text color of an F1 link when a user has tabbed to it with their keyboard.

CSS

Here is an example of how these variables would be used in a rule set.

// This is the F1 icon in its hover state
.no-touch .mt-icon-f1-link:hover:before,
.no-touch .ui-widget-content .mt-icon-f1-link:hover:before,
.no-touch .ui-widget-content .mt-f1-link:hover .mt-icon-f1-link:before {
    background: @f1-icon-background-color-hover;
    border-color: @fi-icon-border-color-hover;
    color: @f1-icon-text-color-hover;
}

Note: The .no-touch selector is used for all hover pseudo elements because of :hover conflicts with certain touch screen devices.

Status messages

Expert uses messaging to communicate important information about the outcome of certain functionalities. There are five different styles of status message: error, success, warning, info, and pro-member warning.

Error message


Variables

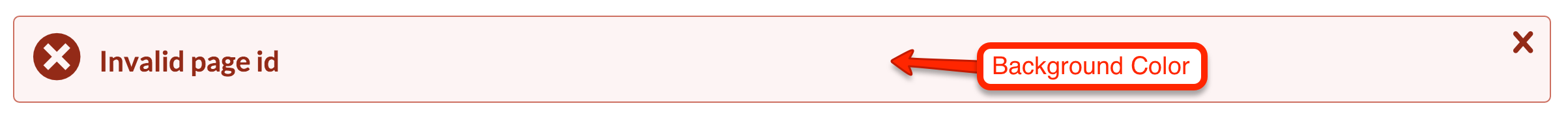

@error-message-background-color
Default value: #FDF4F4
Definition: The background color of the error message container.
@error-message-border-color
Default value: #CB7064
Definition: The border color of the error message container.
@error-message-font-color
Default value: #912B1D
Definition: The text color inside the error message container.

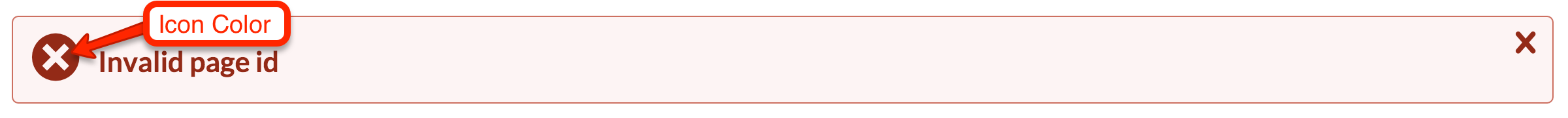

@error-message-icon-color
Default value: #912B1D
Definition: The icon color inside the error message container.

Mixin

.error-message {
    background: @error-message-background-color;
    border: 1px solid @error-message-border-color;
    color: @error-message-font-color;
}

CSS

Here is an example of how these variables and mixin are used in rule sets.

// The error message container
.errormsg {
    .error-message;
}

// The error message delete button
.errormsg .delete-msg {
    color: @error-message-icon-color;
}

// The error message icon found on the left side of the container
.errormsg .inner:before {
    color: @error-message-icon-color;
    content: '\e891';
}

Success message


Variables

@success-message-background-color
Default value: #F5FCF6
Definition: The background color of the success message container.
@success-message-border-color
Default value: #1EA824
Definition: The border color of the success message container.
@success-message-font-color
Default value: #287733
Definition: The text color inside the success message container.
@success-message-icon-color
Default value: #1EA824
Definition: The icon color inside the success message container.

Mixin

.success-message {
    background: @success-message-background-color;
    border: 1px solid @success-message-border-color;
    color: @success-message-font-color;
}

CSS

Here is an example of how these variables and mixin are used in rule sets.

// The success message container
.successmsg {
    .success-message;
}

// The success message delete button
.successmsg .delete-msg {
    color: @success-message-icon-color;
}

// The success message icon found on the left side of the container
.successmsg .inner:before {
    color: @success-message-icon-color;
    content: '\e6fc';
}

Warning or upgrade message


Variables

@upgrade-warn-message-background-color
Default value: #FDF7EC
Definition: The background color of the warning/upgrade message container.
@upgrade-warn-message-border-color
Default value: #DB4D05
Definition: The border color of the warning/upgrade message container.
@upgrade-warn-message-font-color
Default value: #C06800
Definition: The text color inside the warning/upgrade message container.

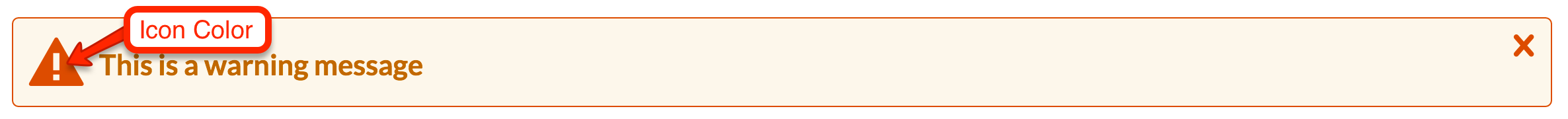

@upgrade-warn-message-icon-color
Default value: #DB4D05
Definition: The icon color inside the warning/upgrade message container.

Mixin

.upgrade-warn-message {
    background: @upgrade-warn-message-background-color;
    border: 1px solid @upgrade-warn-message-border-color;
    color: @upgrade-warn-message-font-color;
}

CSS

Here is an example of how these variables and mixin are used in rule sets.

// The warning message container
.upgrade,
.warningmsg {
    .upgrade-warn-message;
}

// The warning message delete button
.upgrade .delete-msg,
.warningmsg .delete-msg {
    color: @upgrade-warn-message-icon-color;
}

// The warning message icon found on the left side of the container
.upgrade .inner:before,
.warningmsg .inner:before {
    color: @upgrade-warn-message-icon-color;
    content: '\e89a';
}

Informational message


Variables

@system-info-message-background-color
Default value: #EEF9FF
Definition: The background color of the informational message container.
@system-info-message-border-color
Default value: #30b3f6
Definition: The border color of the informational message container.
@system-info-message-font-color
Default value: #0597E2
Definition: The text color inside the informational message container.
@system-info-message-icon-color
Default value: #30b3f6
Definition: The icon color inside the informational message container.

Mixin

.system-info-message {
    background: @system-info-message-background-color;
    border: 1px solid @system-info-message-border-color;
    color: @system-info-message-font-color;
}

CSS

Here is an example of how these variables and mixin are used in rule sets.

// The informational message container
.infomsg {
    .system-info-message;
}

// The informational message delete button
.infomsg .delete-msg {
    color: @system-info-message-icon-color;
}

// The informational message icon found on the left side of the container
.infomsg .inner:before {
    color: @system-info-message-icon-color;
    content: '\e897';
}

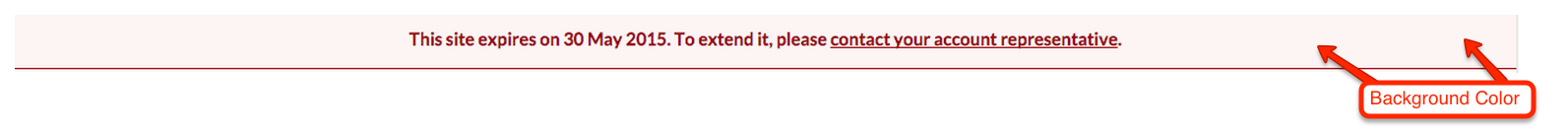

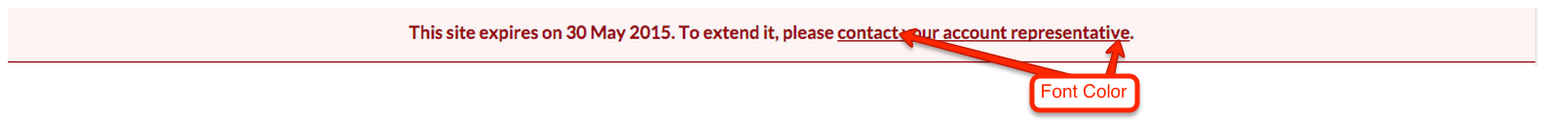

Seated member warning messages


Variables

@mt-banner-background-color
Default value: @error-message-background-color
Definition:
@mt-banner-border-color
Default value: @error-message-border-color
Definition:
@mt-banner-font-color
Default value: @error-message-font-color
Definition:

Mixin

.mt-banner-message {
    background: @mt-banner-background-color;
    border-bottom: 1px solid @mt-banner-border-color;
    color: @mt-banner-font-color;
}

CSS

Here is an example of how the pro-member warning banner would be used in a rule set.

.mt-banner {
    .mt-banner-message;
    font-size: 100%;
    font-weight: bold;
    padding: 1em;
    text-align: center;
}

Dynamic listings

Displaying a list of sub-pages, related pages, or search results filters these dynamic containers are found throughout the site. Their minimalistic design consists of a simple rounded grey border with a highlight color glow on hover and is meant to showcase the content within.

Basic container styling

The variables associated with these containers not only control the style, but the ability to resize to their environment. This means that if the screen size shrinks down, the listings will shrink or grow and change their row count automatically.


// Basic dynamic listing style variables
@dynamic-listing-border-color: lighten(@highlight-color-desaturated, 13%);
@dynamic-listing-border-color-hover: @highlight-color;
@dynamic-listing-edit-border-color: darken(@highlight-color-desaturated, 18%);
@dynamic-listing-edit-border-color-hover: @highlight-color;
@dynamic-listing-hover-glow: fade(@default-button-border-color-hover, 30%);

// Basic dynamic listing mixins that control the above style variables
.flexbox-style {
    border: 1px solid @dynamic-listing-border-color;
    border-radius: @border-radius-lsf;
    box-sizing: border-box;
}
.flexbox-style-hover {
    border-color: @dynamic-listing-border-color-hover;
    box-shadow: 0 .1em 0 rgba(0,0,0,.05), 0 0 .8em @dynamic-listing-hover-glow;
}
.flexbox-style-edit {
    border: 1px dashed @dynamic-listing-edit-border-color;
    box-sizing: border-box;
}
.flexbox-style-edit-hover {
    border-color: @dynamic-listing-edit-border-color-hover;
    box-shadow: 0 .1em 0 rgba(0,0,0,.05), 0 0 .8em @dynamic-listing-hover-glow;
}

Advanced styling

For more advanced control over the flexibility of these dynamic listings, there are two advanced mixins that can be used. You will need experience with using media queries for different screen sizes. The first mixin, .display-flex is meant to be applied to the parent container the listings will be displayed in; usually an <ol> or <ul>. The second mixin .flexbox-listing is meant for the child elements or individual listings. The values that this mixin may contain have to do with the CSS3 specification for flexbox (CSS Flexible Box Layout) and require an advanced knowledge of CSS. For more information about flexbox please visit the specification page located at http://dev.w3.org/csswg/css-flexbox.

// Flex display mixin for parent container
.display-flex {
    .ms-flex-display;
    .webkit-flex-display;
    align-content: flex-start;
    align-items: stretch;
    display: -ms-flexbox;
    display: -webkit-flex;
    display: flex;
    flex-direction: row;
    flex-wrap: wrap;
    justify-content: flex-start;
}

// Flex display mixin for each listing
.flexbox-listing(@flex-grow: 1; @flex-shrink: 1; @flex-basis: 18em) {
    -ms-flex: @flex-grow @flex-shrink @flex-basis;
    -webkit-flex: @flex-grow @flex-shrink @flex-basis;
    flex: @flex-grow @flex-shrink @flex-basis;
    min-width: 0;
}

For more advanced branding of your site, learn more about using CSS and LESS to brand your site.
